Experiences (Control Systems)

Experiences with Practical Control Systems involving Motors, Embedded Systems & Power Electronics

1. Experience at the Control Systems Laboratory (EE380 Lab) of IIT Kanpur (worked for about 2 years):

I worked in the Control System Laboratory at IIT Kanpur as a teaching assistant for undergraduate students for about 2 years. The experiments in this laboratory were developed in-house at IIT Kanpur and primarily focused on DC motor control. These experiments are as follows:

Experiment 1: PMDC motor modeling, identification, and speed control
Experiment 2: Speed of PMDC motor tracks reference sinusoid
Experiment 3: Ziegler-Nichols tuning of speed controller of PMDC motor
Experiment 4: Control of speed using armature current
Experiment 5: Control of armature current
Experiment 6: Disturbance observer

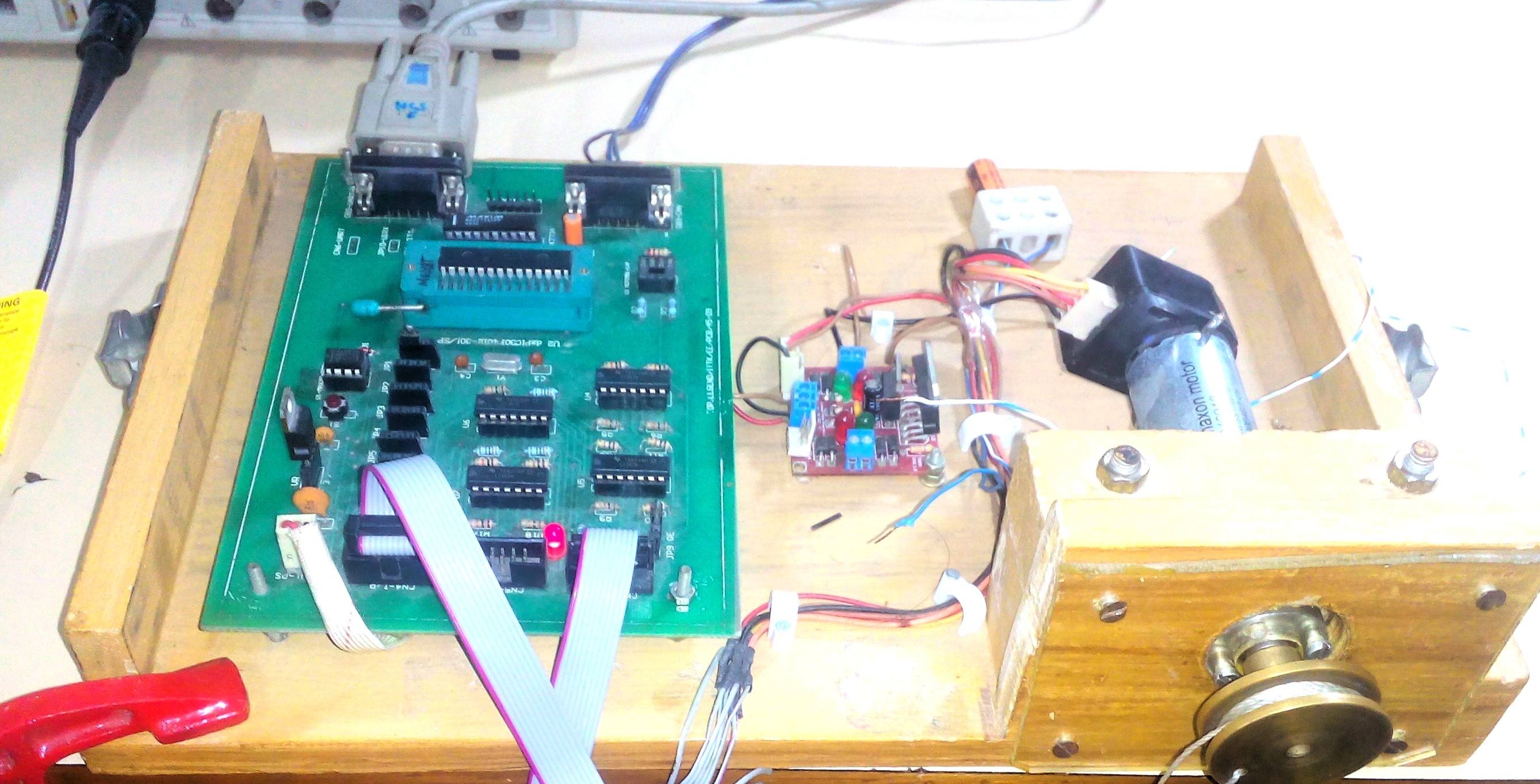

Figure: DC Motor Control System Kit at IIT Kanpur. Link to the Laboratory Manual: Click here.

2. BLDC Motor Control Systems Setup Using STM32 at IIT Kanpur:

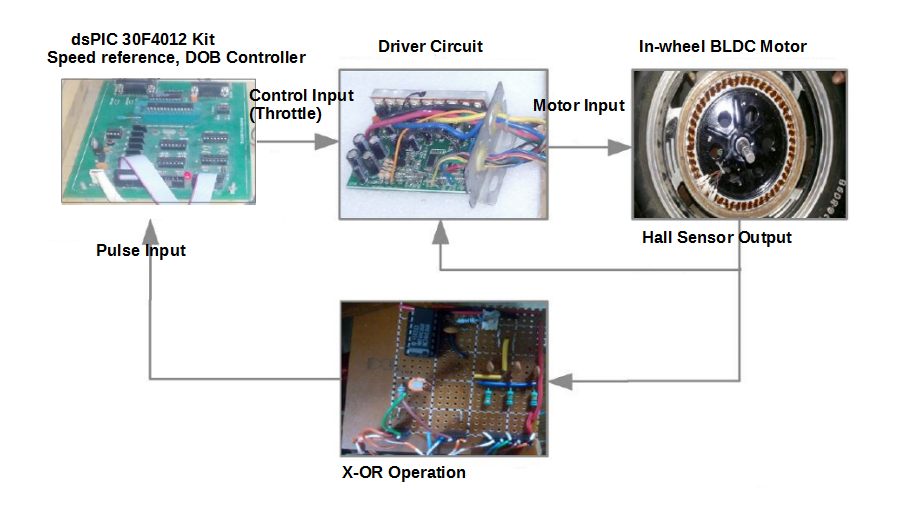

BLDC Motor Control System at IIT Kanpur — Figure: In-Wheel BLDC Motor Control System developed at Control Systems Lab at IIT Kanpur.

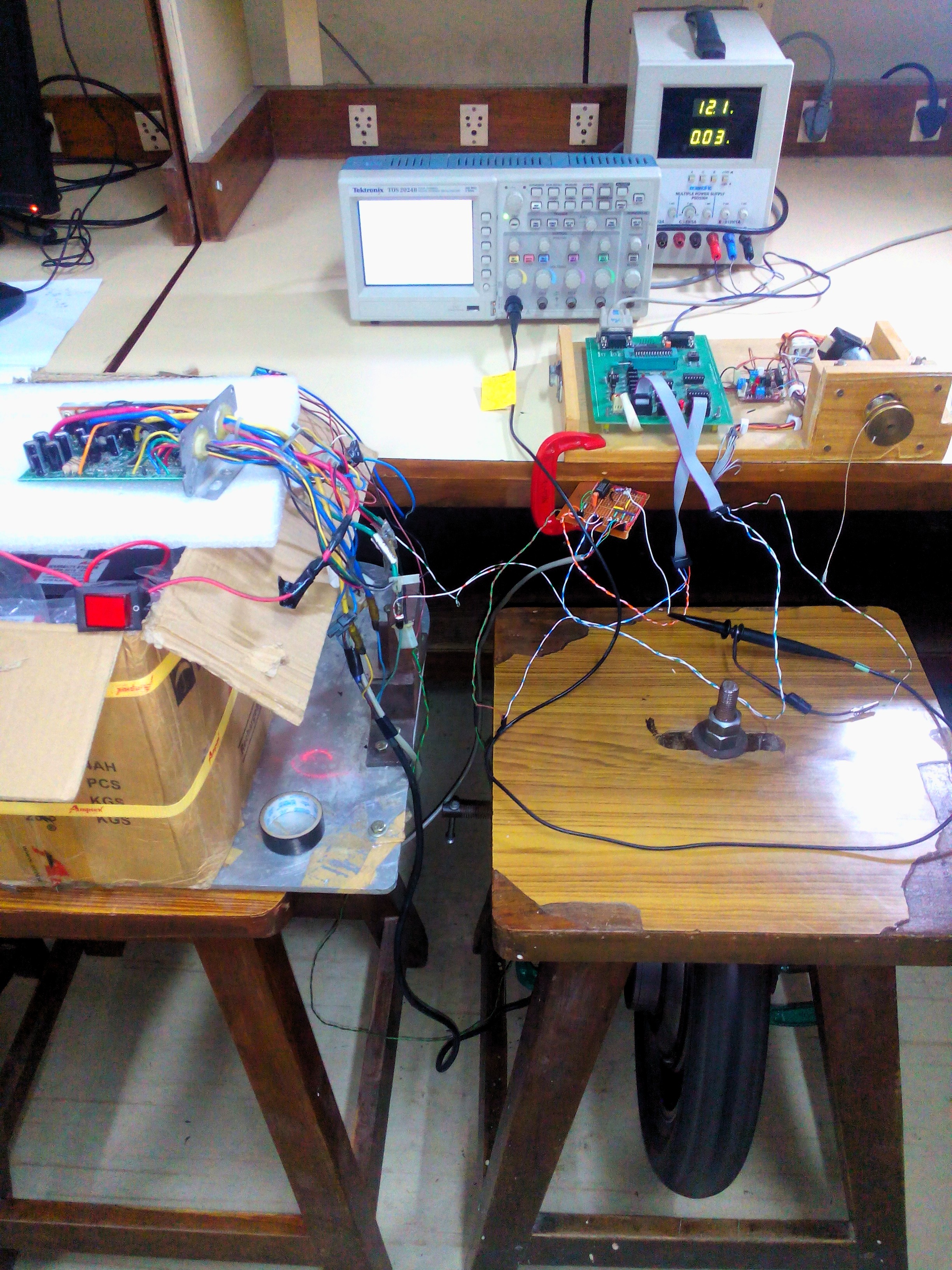

Figure: In-Wheel BLDC Motor Control System developed at Control Systems Lab at IIT Kanpur.

3. BLDC Motor Control Systems Setup Using Arduino and self-developed 48V inverter:

4. Demonstration of a coil winding machine using STM32:

5. Developing a temperature control system using AC power (Considering light bulb for initial testing):

6. Touch Screen Display Design having a reference graph using ESP32:

7. Raspberry PI PICO used to design a display (Nokia) for oxygen concentrator:

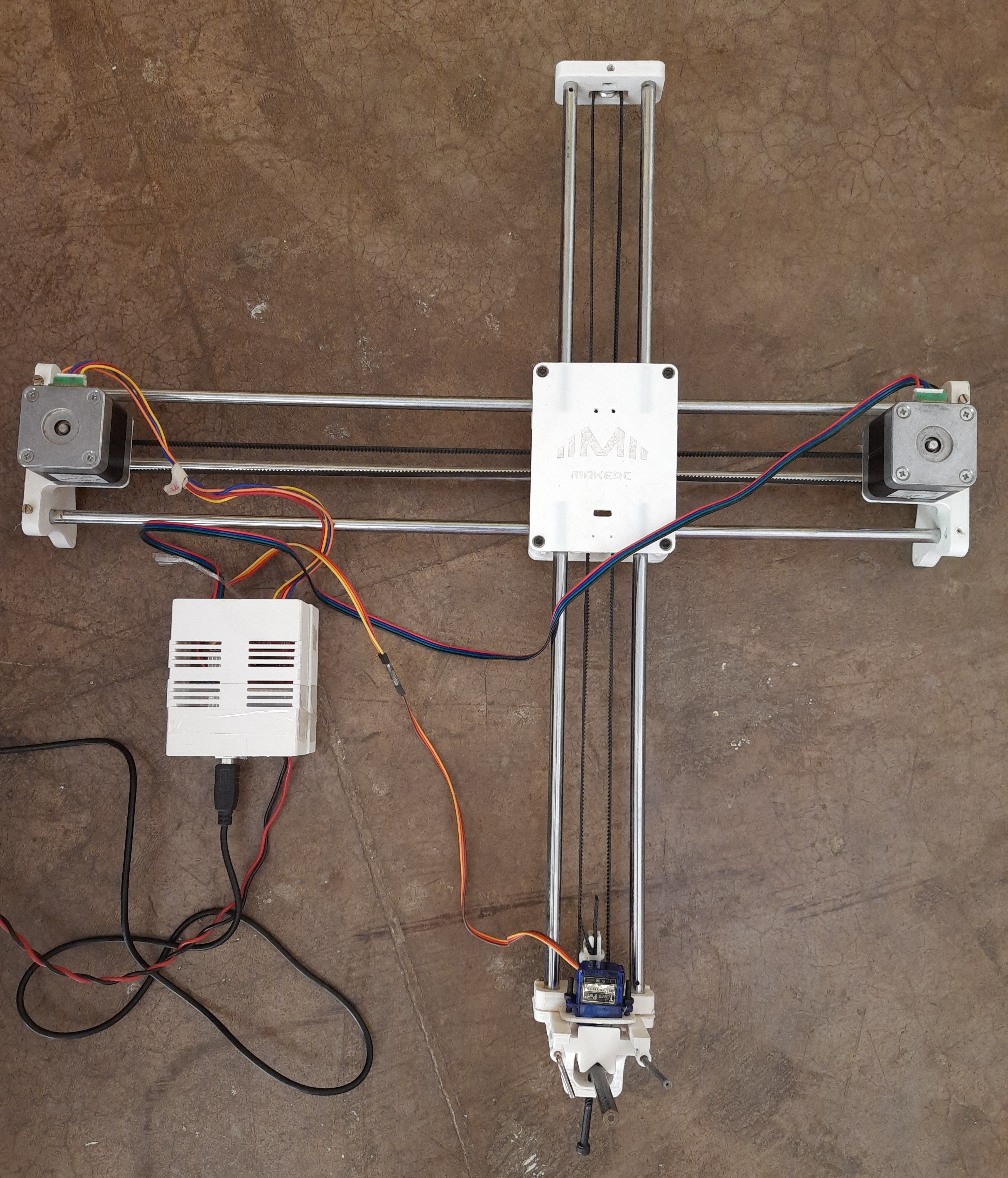

8. 3D printed Pen plotter using Arduino Uno:
